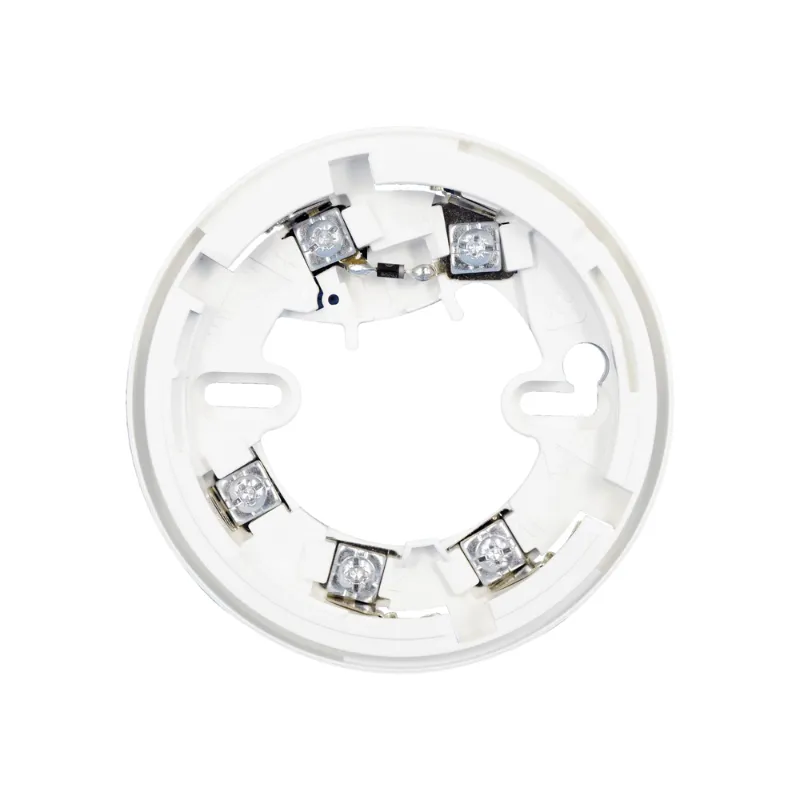

The 6000PLUS/BASE is Protec’s standard surface mount detector base for use with the Protec 6000PLUS detector range.
It allows the detectors to be mounted directly to any flat surface, or BESA box.
Provision is also made for surface mount trunking entry via side breakouts.
It has an in-built earth connection to allow easy termination of cable screens and permit earth continuity on broken segments of cable.
The base features robust wiring terminals with captive clamping washers to ensure secure wiring termination. Terminals are provided inside the moulding for loop connections and the termination of cable screening. Provision is also made for the connection of an optional remote LED if required.
Loop continuity is maintained by a switch on the 6000PLUS/BASE.
| Environment | -10°C to +50°C, 95% R.H. non condensing or icing) |
| Ingress Protection | IP32 |
| Weight (excluding base) | 56g |
| Voltage Range | 30V maximum |
| Mounting | Surface or BESA box |
| Material | White polycabonate V0 rated |
| Application | Indoor Installation |
| EMC | CE Marked (EEC89/336) |
| Dimensions (mm) | 98.62ø x 18.37H |
SKU: 6000PLUS/BASE/E
